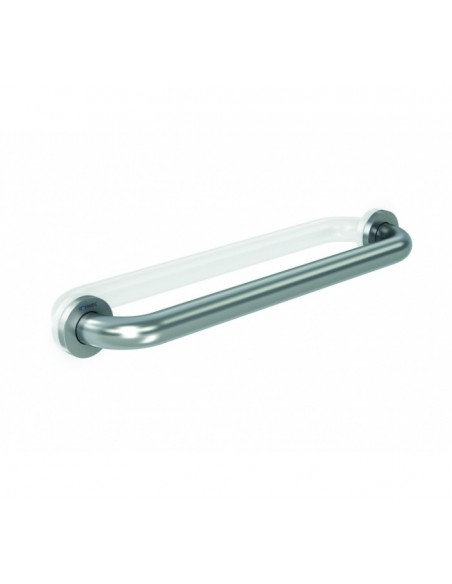

Straight steel support bar GENWEC
GW11 01 04 01
€31.41
€39.26
-20%
Tax included
Straight bar with 2 support points that can be installed both horizontally and vertically.
Anti-vandalism
SPECS Straight steel support bar GENWEC:
- Zinc-plated carbon steel supports Ø 77.5 mm and 2.5 mm thick.
- Ceiling rose covers 0.5 mm thick carbon steel screws.
- Three holes for each support of Ø6.5 mm
- Separation from the wall: 43 mm (complies with the architectural barrier regulations).
- Maximum static and dynamic force that supports (approximately): 120 Kg.
CHARACTERISTICS OF 304 STAINLESS STEEL AND STEEL BARS:
- Made of steel (epoxy painted) or 304 stainless steel guaranteeing high resistance to corrosion.
- Epoxy painted steel models include anti-rust treatment.
- All bars in steel and stainless steel. they have a diameter of 32 mm.
- The steel tube or stainless steel. it has a thickness of 1.5 mm.
- All the bars include decorative finials for concealed mounting.
- Necessary stainless steel hardware. included.
- The bending process of the bars ensures the uniformity of the curves.
- Bars are available in 316 stainless steel upon request.
- There is the possibility of custom manufacturing on request in all models.
SPECS Straight steel support bar GENWEC:
- Zinc-plated carbon steel supports Ø 77.5 mm and 2.5 mm thick.
- Ceiling rose covers 0.5 mm thick carbon steel screws.
- Three holes for each support of Ø6.5 mm
- Separation from the wall: 43 mm (complies with the architectural barrier regulations).
- Maximum static and dynamic force that supports (approximately): 120 Kg.
CHARACTERISTICS OF 304 STAINLESS STEEL AND STEEL BARS:
- Made of steel (epoxy painted) or 304 stainless steel guaranteeing high resistance to corrosion.
- Epoxy painted steel models include anti-rust treatment.
- All bars in steel and stainless steel. they have a diameter of 32 mm.
- The steel tube or stainless steel. it has a thickness of 1.5 mm.
- All the bars include decorative finials for concealed mounting.
- Necessary stainless steel hardware. included.
- The bending process of the bars ensures the uniformity of the curves.
- Bars are available in 316 stainless steel upon request.
- There is the possibility of custom manufacturing on request in all models.
