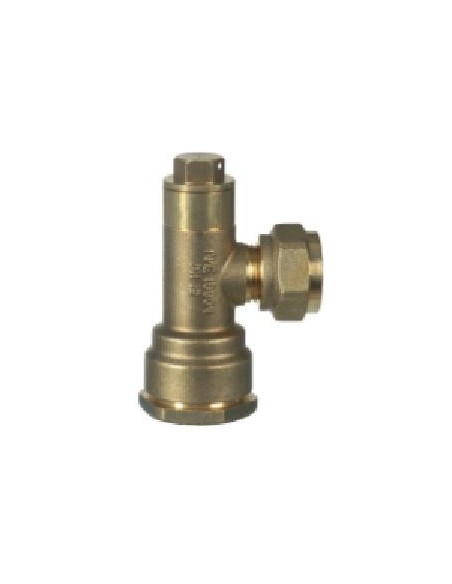

Inlet valve with connection to polyethylene.

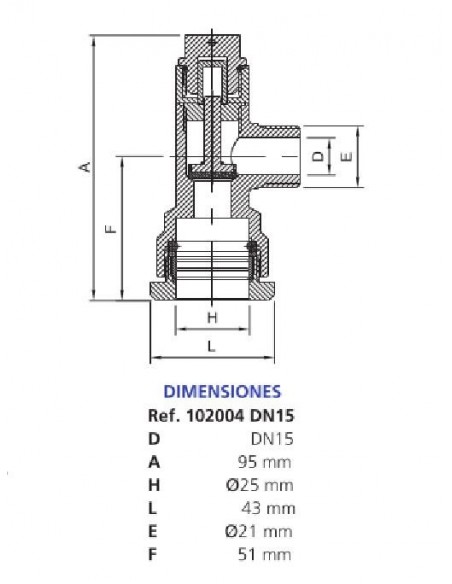

Outside diameter 25 mm. to install on individual 13 and 15 mm meters. nominal diameter.
Equipped with non-return device.
BS series.
Body: CW617 N, UNE-EN 12165
Control chamber: CW617 N, UNE-EN 12165
Closing plug: CW617 N, UNE-EN 12165
Reversible piston: bar turning in brass, UNE-EN 12165 standard
Non-return toe cap: CW617 N brass, UNE-EN 12165 and NBR shore 85 + -5 gasket
O-ring: NBR shore 70
Plug O-ring: NBR shore 70
Clamping ring: bar turning brass UNE 12166 standard
Lock nut: brass CW617 N, UNE-EN 12165
Washer: brass bar turning UNE 12166
Body: CW617 N, UNE-EN 12165
Control chamber: CW617 N, UNE-EN 12165
Closing plug: CW617 N, UNE-EN 12165
Reversible piston: bar turning in brass, UNE-EN 12165 standard
Non-return toe cap: CW617 N brass, UNE-EN 12165 and NBR shore 85 + -5 gasket
O-ring: NBR shore 70
Plug O-ring: NBR shore 70
Clamping ring: bar turning brass UNE 12166 standard
Lock nut: brass CW617 N, UNE-EN 12165
Washer: brass bar turning UNE 12166
