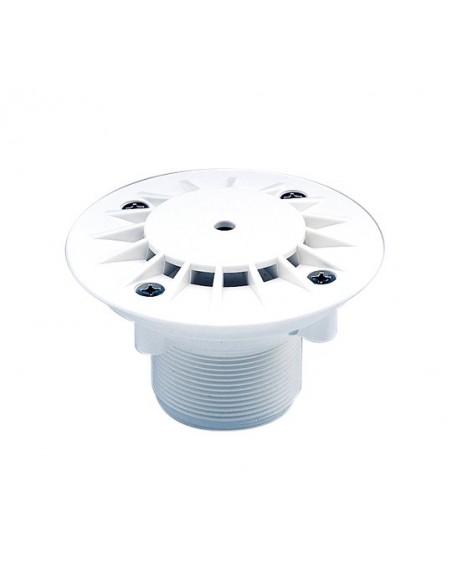

Bottom nozzle Drive / aspiration ASTRALPOOL
00303
€13.29
€22.16
-40%
Tax included

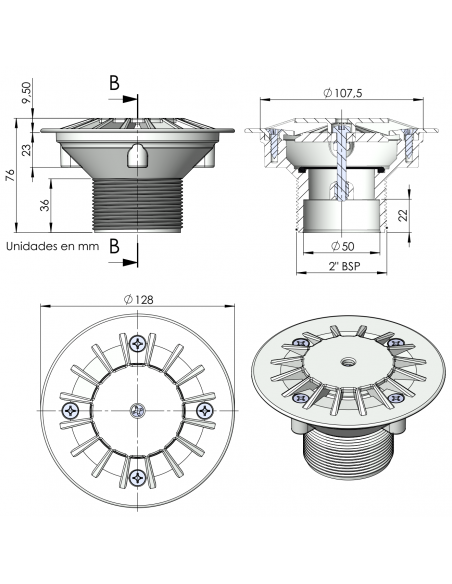

Impulsion / Aspiration Nozzle with white bottom, for concrete pools, with 2 ″ external thread and 50 mm internal Ø.
Adjustable flow.
Made of ABS plastic material and stainless steel hardware.
Maximum recommended flow according to UNE 13451-1 Standard: 12 m3 / h.
CHARACTERISTICS Bottom nozzle Drive / aspiration ASTRALPOOL:
One of the most important factors to take into account when designing a pool is to provide for a uniform and effective recirculation of water.
The specific function of the discharge nozzles is to create a stream of water inside, taking advantage of the return of the filtered water.
The type of pool and the flow determined by the pump are the parameters for choosing the number of nozzles.
Its distribution must ensure uniform circulation throughout the pool, avoiding creating watertight corners.
In pools with a continuous overflow, it is advisable to place bottom nozzles, which can be installed in any area of the pool, always respecting safety measures.
FLOW GRADUATION
To give more or less flow through the nozzle, the central screw must be screwed or unscrewed with the help of a screwdriver.
To close the flow, the screw must be screwed to the maximum and to achieve the maximum flow, the screw must be loosened as much as possible.
CHARACTERISTICS Bottom nozzle Drive / aspiration ASTRALPOOL:
One of the most important factors to take into account when designing a pool is to provide for a uniform and effective recirculation of water.
The specific function of the discharge nozzles is to create a stream of water inside, taking advantage of the return of the filtered water.
The type of pool and the flow determined by the pump are the parameters for choosing the number of nozzles.
Its distribution must ensure uniform circulation throughout the pool, avoiding creating watertight corners.
In pools with a continuous overflow, it is advisable to place bottom nozzles, which can be installed in any area of the pool, always respecting safety measures.
FLOW GRADUATION
To give more or less flow through the nozzle, the central screw must be screwed or unscrewed with the help of a screwdriver.
To close the flow, the screw must be screwed to the maximum and to achieve the maximum flow, the screw must be loosened as much as possible.
