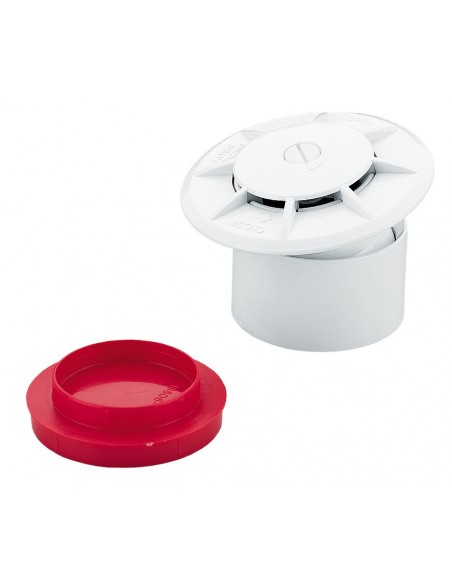

Oscillating Bottom Nozzle ASTRALPOOL
22353
€22.46
€37.43
-40%
Tax included
The oscillating nozzle allows a perfect adjustment to the ground at the time of its installation.
Its use is especially recommended when using overflow channels.
These bottom nozzles are located in the hearth, propelling the water at ground level.
They prevent sedimentation of dirt and drag it to the surface.
Its installation is very easy and fast, saving a lot of time in the installation and leveling of the pipes at the bottom of the pool.
CHARACTERISTICS Oscillating Bottom Nozzle ASTRALPOOL:
Oscillating body in PVC.
Lid made of ABS.
Regulating screw made of POM.
Maximum working flow 10 m3 / h.
The oscillating bottom nozzles is a cleaning system integrated into the bottom of concrete pools that propel water.
In addition to cleaning, chemical and heating costs are reduced.
The radius of action and flow can be regulated thanks to the opening control.
The characteristics of the nozzle at a pressure of 2 kg are: radius of action of 1.3 m and a maximum flow of 10 m3 / h.
The nozzles will be installed spread over the bottom of the pool taking into account that the radius of action of the nozzle is approximately 1.3 m. depending on the pump used and the distance from the nozzle to the vertical walls should be between 0.6m and 1m.
CHARACTERISTICS Oscillating Bottom Nozzle ASTRALPOOL:
Oscillating body in PVC.
Lid made of ABS.
Regulating screw made of POM.
Maximum working flow 10 m3 / h.
The oscillating bottom nozzles is a cleaning system integrated into the bottom of concrete pools that propel water.
In addition to cleaning, chemical and heating costs are reduced.
The radius of action and flow can be regulated thanks to the opening control.
The characteristics of the nozzle at a pressure of 2 kg are: radius of action of 1.3 m and a maximum flow of 10 m3 / h.
The nozzles will be installed spread over the bottom of the pool taking into account that the radius of action of the nozzle is approximately 1.3 m. depending on the pump used and the distance from the nozzle to the vertical walls should be between 0.6m and 1m.
