VÁLVULA DE SALIDA PARA BATERÍA CON PURGA DN 13-15-20
VÁLVULA DE SALIDA PARA BATERÍA CON PURGA DN 13-15-20
VÁLVULA DE SALIDA PARA BATERÍA CON PURGA DN 13-15-20
VÁLVULA DE SALIDA PARA BATERÍA CON PURGA DN 13-15-20

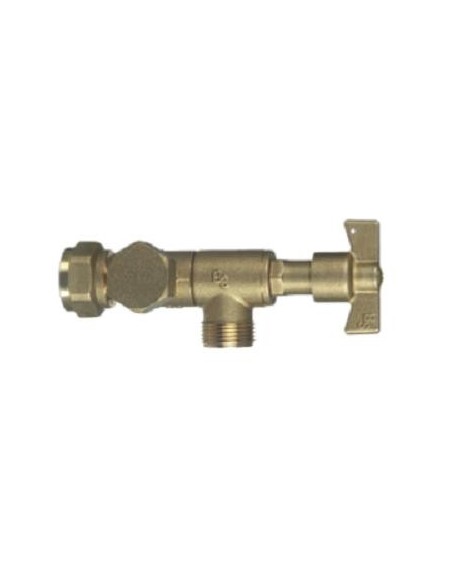

Outlet Valve With Purge For Centralization Of Meters

103006
€18.02 €24.03 -25%
Tax included

Outlet valve to be installed in centralization of 13, 15 and 20 mm meters. nominal diameter.

Equipped with non-return device and purge set for checking the

meter according to UNE 19804 standard.

BS series.

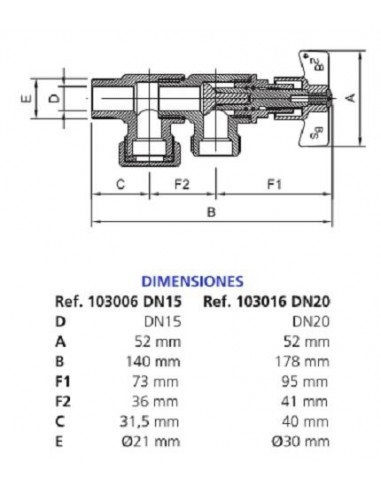

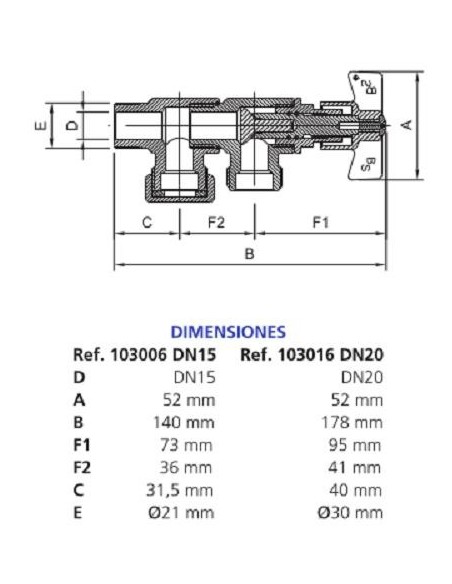

Measure in mm
Estimated delivery date: 13 May 2024
Estimated delivery date: 15 de May 2024
Estimated delivery date: 10 de May 2024



CHARACTERISTICS Outlet Valve With Purge For Centralization Of Meters:

Body: CW617 N, UNE-EN 12165

Purge body: CW617 N, UNE-EN 12165

Press and tow: CW617 N, UNE-EN 12165

Steering wheel: CW617 N, UNE-EN 12165

Spindle: bar turning in brass, UNE-EN 12166 standard

Screw: brass M-4 DIN 267

Non-return toe (DN 13-15): NBR shore 80 + -5

Non-return toe cap (DN 20): CW617 N brass, UNE-EN 12165 and NBR shore 80 + -5 gasket

Stuffing box o-ring: NBR shore 70

Spindle O-ring: NBR shore 70

Seal O-ring: NBR shore 70

Plug: brass CW617 N, UNE 12165

Flat seal cap: EPDM shore 60 + -5

Gas thread: DIN 259

CHARACTERISTICS Outlet Valve With Purge For Centralization Of Meters:

Body: CW617 N, UNE-EN 12165

Purge body: CW617 N, UNE-EN 12165

Press and tow: CW617 N, UNE-EN 12165

Steering wheel: CW617 N, UNE-EN 12165

Spindle: bar turning in brass, UNE-EN 12166 standard

Screw: brass M-4 DIN 267

Non-return toe (DN 13-15): NBR shore 80 + -5

Non-return toe cap (DN 20): CW617 N brass, UNE-EN 12165 and NBR shore 80 + -5 gasket

Stuffing box o-ring: NBR shore 70

Spindle O-ring: NBR shore 70

Seal O-ring: NBR shore 70

Plug: brass CW617 N, UNE 12165

Flat seal cap: EPDM shore 60 + -5

Gas thread: DIN 259
